概述

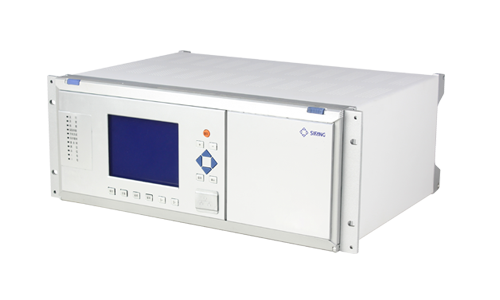

CSC-150 Busbar Protection IED is selective, reliable and high speed distributed busbar protection IED with powerful capability with following advanced features: 1) For Various busbar or breaker arrangement; 2) Up to 40 bays 3) Fully proven protection functions library; 4) Powerful scalable hardware capability, for present and future application: Mixable CT&VT inputs/SV(Sampling Value) input/output; Mixable Binary inputs & output relays / GOOSE inputs/outputs; 5) Robust hardware with excellent EMC performance and IP54 protection under -40℃ to 70℃ operating temperature; 6) CSC- works as the bay unit of the distributed busbar protection system, not bay unit only, but also feeder protection IED.
适用范围
The 1000kV and below bus system, applicable to various wiring-type conventional or intelligent substation such as single bus, single bus segmentation, single bus three segmentation, double bus, double bus and segmentation, double bus single segmentation and a half circuit breaker.
特点
①Hardware system with high performance and reliability and large resource
②Self-inspection intelligence of hardware
③Humanized user interface
④Transparent action process
⑤Automatic site debugging
⑥Diversified communication interface
⑦New front and rear plug combination structure
⑧Support IEC61850 standard communication
⑨Modular software design
产品认证

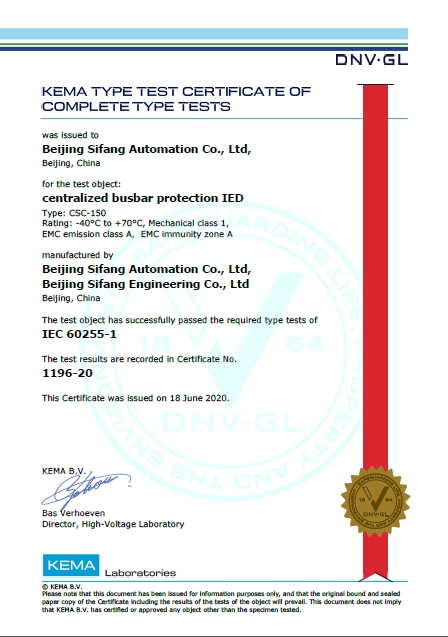

CSC-150 (Centralized) KEMA CERTIFICATE

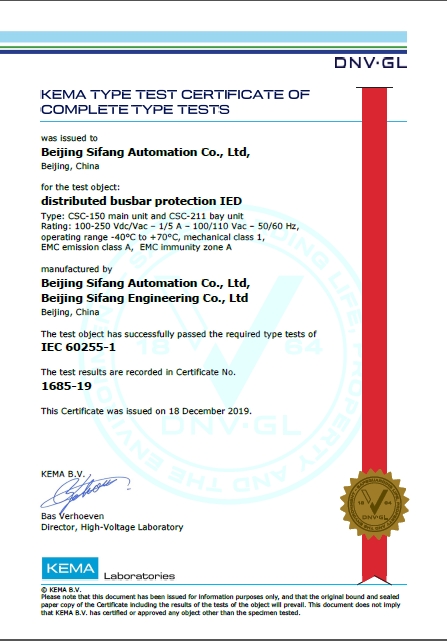

CSC-150 (Distributed) KEMA CERTIFICATE

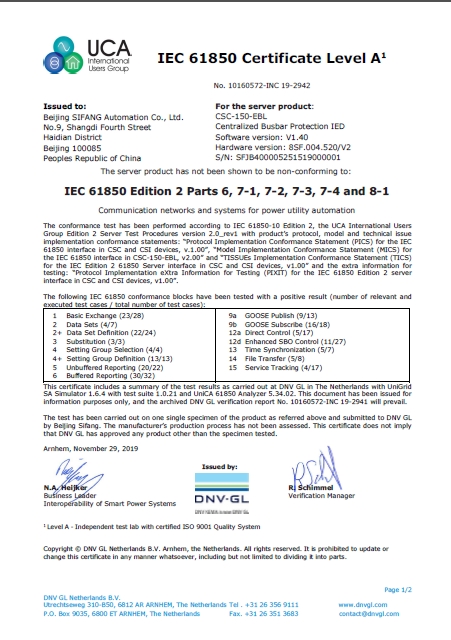

CSC-150（Centralized）IEC61850 CERTIFICATE
