概述

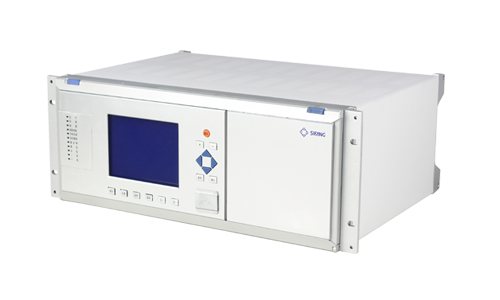

CSI-200E bay control unit can be applied for power plants or serves as common measurement and control devices. CSI-200E is designed for individual bay including transformer bay, 110kV line bay, 220kV line bay, 500kV line bay, 750 kV line bay, bus-bar bay, bypass bay, kiosk bay and common bay (for station auxiliaries), etc.
适用范围
CSI-200E bay control unit is designed for SAS of 110kV substation or above.
特点
①Flexible configuration Modularized hardware enables the device to be configured according to the existing site conditions.
②Excellent EMC compatibility capability. Passed 9EMC standard items defined in IEC 61000-4.
③Large LCD with friendly interface on the device front panel.
④The single-line diagram can be displayed on the device. CB and switches, which are included in the diagram, can be operated directly in LOCAL mode from the device front panel.
⑤All records of device running and operation are stored in Non-Volatile permanent memory and the data will not be lost in case of power failures, enabling easy fault analysis.
⑥Powerful communication capability. Providing optic or electronic Ethernet interface, LonWorks interface, RS 485 interface to communicate with other device.
⑦Complete self-diagnosis enables easy and fast trouble shooting.
⑧Measurable and visible internal temperature makes it possible to monitor the change of environment.
产品认证

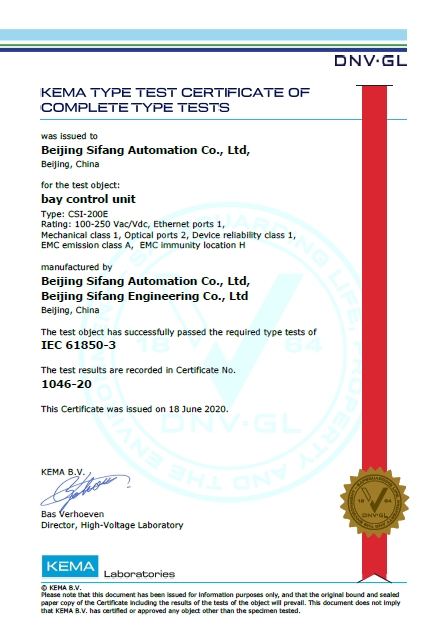

CSI-200E IEC61850-3 KEMA CERTIFICATE

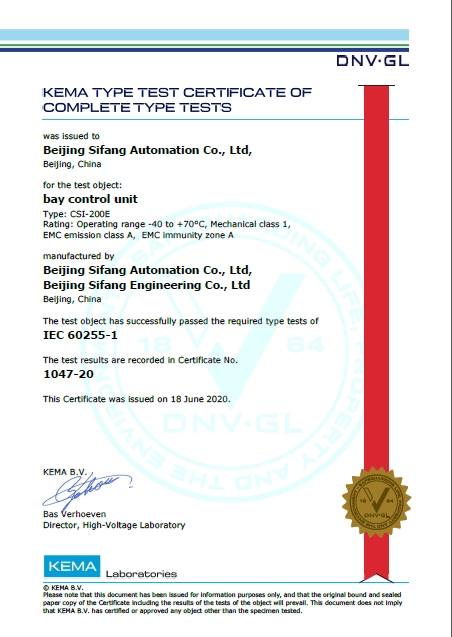

CSI-200E IEC60255-1 KEMA CERTIFICATE
