概述

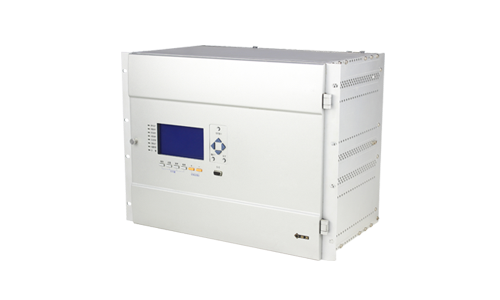

CSC-316 Transformer Protection IED is established in a general hardware and software platform. All functions are modulized designed and at the same time diagnosis and debugging tools are also provided. According to the actual needs of the field, through the visual chart logic, users can customize all kinds of protection and control logic. The equipment is highly reliable, flexible and maintainable and can be adapted to the different site conditions.
适用范围
CSC-316 Transformer Protection IED with powerful functions is selective, reliable and rapid. It is suitable for digital relay protection device of main transformer and high voltage auxiliary transformer of various voltage levels in power plant.
特点
①Select the corresponding configuration for different application scenarios.
②Equipped with module self-check function.
③Provide completed report record, operation report, alarm report, startup report and trip report. All reports could save no less than 40 items and are able to save when power is off.
④Up to two electric/optical Ethernet ports and capable of communicating with substation automation system through IEC 61850 or IEC 60870-5-103 ＆ TCP103; protocol.
⑤RS485 is provided to commnicate with substation automatic system by protocol IEC 60870-5-103.
⑥It supports PRP protocol based on IEC 62439-3, the device can be set to PRP mode, and the dual network ports adopt redundant mode to send and receive information in parallel.
⑦SNTP, pulse and IRIG-B time synchronizations are available for choosing.
⑧It can be centrally installed in the switchgear panel or be installed on the switchgear indoors or outdoors.
